IP65 DC 550v 1000V 2 4 5 6 8 10 12 16 24 ways string solar PV combiner box for solar power system

FOB Reference Price:Get Latest Price
$30.00 - $350.00 / Piece | 10.0 Piece/Pieces (Min. Order)
Type:
DC fuse rating 15A PV string combiner box pricesConvergence box
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 500 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Worldsunlight/OEM
Model Number:
WSDB-PV series
Strings:
2,4,5,6,8,10,12,16,24
Waterproof grade:
IP65
Maximum Output current:
60-780A
Maximum Fuse per strings:
30A
Box material:
Cold pressed steel
Maximum DC Voltage Input:
DC 1000V
Dimension for 16 strings:
800mm*500mm*180mm
Bus bars:
electroplated to prevent corrosion
Safety shields:
Lexan shields over all live parts for a completely dead ront unit.
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month DC fuse rating 15A PV string combiner box pricesConvergence box
Packaging & Delivery
Packaging Details
standard exporting cartons
Port
Ningbo/Shanghai
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 To be negotiated
Related Products
Product Description

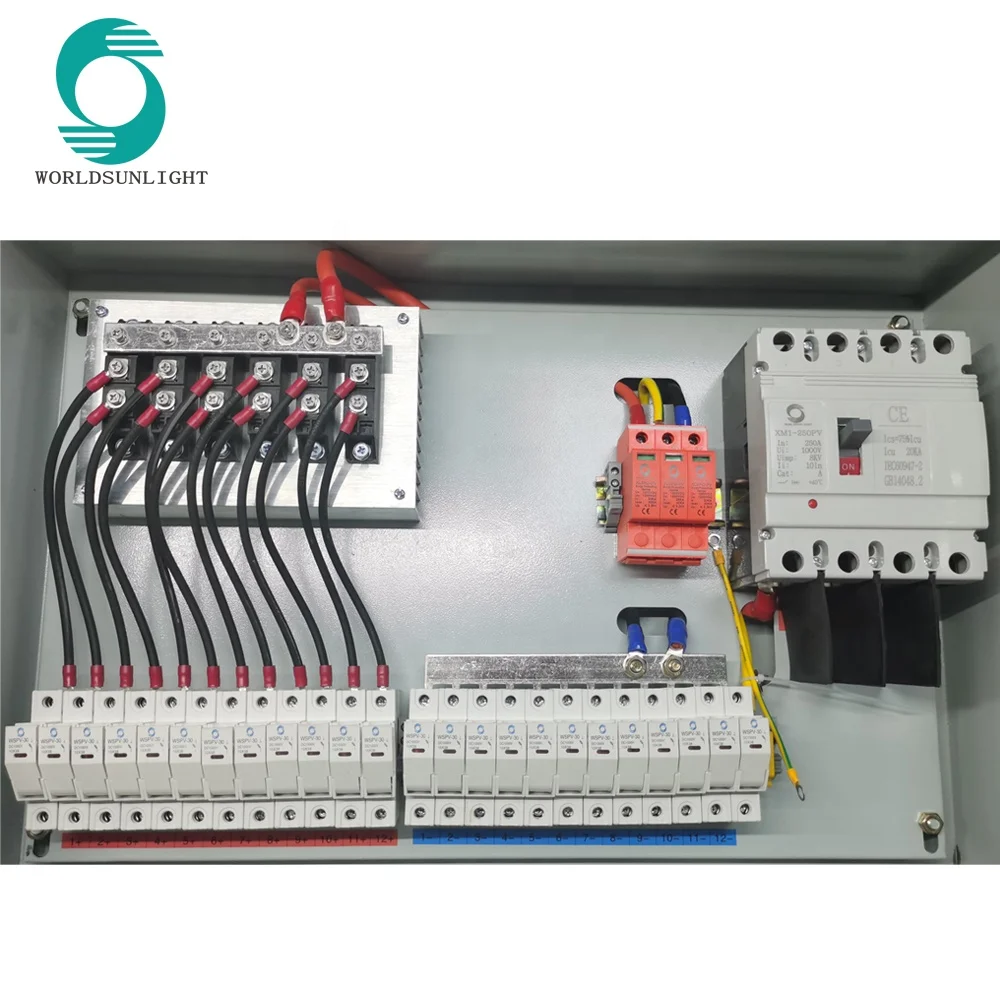

PV combiner box Application:

Worldsunlight PV String DC Combiner Boxes are key components in the PV Solar power systems, which are placed between Solar Modules and the Inverters.


Simplify the physical wiring between solar panel and inverter Fault current protection for each PV String Fault alarm Easy installation and maintenance


PV combiner box Advantage:

Easy machining with normal tools IP66 Wide operation temperature range Fire Resistance Non-conductive Good resistance to chemical corrosion Light weight Excellent insulating properties Cost-effective material for harsh environments

Powder coated Chromium-Nickel Steel enclosure:

Easy machining with normal tools Thickness ≥1.2mm Powder coated cold rolled Surface finish: with the process of pickling and parkerising 80-120 μm IP65 waterproof, dust proof,anti-corrosion and UV resistance Durable: HRPV series combiner boxes are built to withstand harsh environmental exposure Suit for long distance transport
Detailed Images
Shipment

PV combiner box Packing Details:

Metal combiner box 1 pcs per carton

PV combiner box Delivery Time:

1-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.

PV combiner box Shipping:

1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!

Feedback from Customers
FAQ

Q: If I'm interested in your PV combiner box when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.

Q:Can I get a sample before the order because I really don't how is your PV combiner box quality?
A:Of course!We also think sample order is the best way to build the trust.And in our company we offer sample service!Please send the enquiry to us and get the free sample!

Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 10 days.

Q:How's the warranty period for your PV combiner box?
A:We offer 5 years warranty for our customer.
