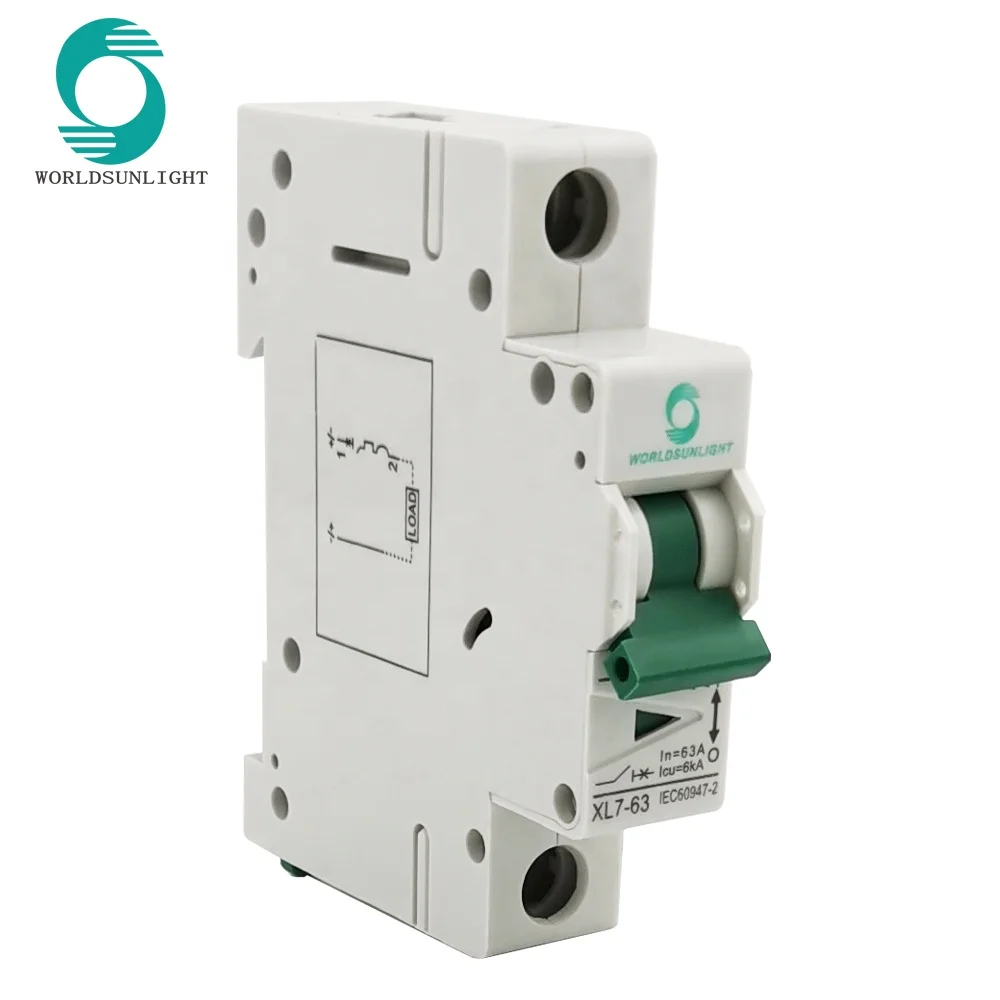

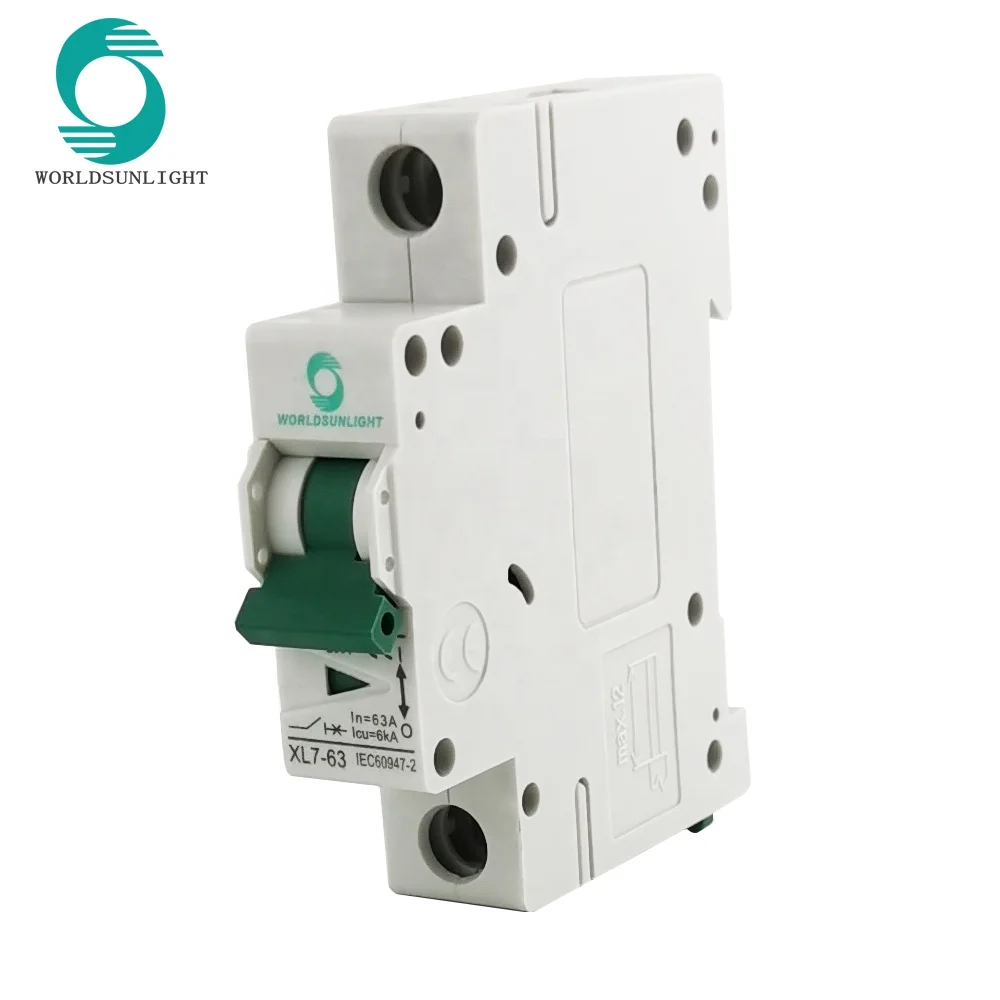

XL7-63C63 DC 250V 6KA 63amp single pole 1p circuit breaker dc mcb for solar pv power system

FOB Reference Price:Get Latest Price
$1.00 - $2.50 / Piece | 100 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 2000 Pieces)
Customized packaging (Min. Order: 10000 Pieces)

More

Graphic customization (Min. Order: 10000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Worldsunlight/OEM
Model Number:
XL7-63C63
Type:
MINI
Poles Number:
1P
Wiring:
Non-polarity
Guarantee period:
2 years
Certification:
IEC, TUV, SAA, CE
Shell color:
White
Window:
Square
Terminal Protection:
with cover
Tripping curve:
C type
Mechanical life:
Not less than 20000 times
Electrical Life:
Not less than 8000 times
Standard:
EN60898(IEC60898);IEC60947-2
Supply Ability
Supply Ability:
230000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Inner box:22.5*9*8.5cm,1.48KG/12pcs
Port
Shanghai/Ningbo
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 7 To be negotiated
Related Products
Product Description

Dc Mcb Application:

XL7-63 Solar system DC MCB,apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.

Dc Mcb Features:

1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing
2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker
4. Safety handle, classic original design, ergonomic

Dc Mcb Tech Parameter:

Item
Dc circuit breaker
Model Number
XL7-63
Pole
1P,2P,3P,4P
Rated Current(In)
1A,3A,6A,10A,16A,20A,25A,32A,40A,50A,63A
Rated Operating Voltage
DC12V-DC1200V
Standard
IEC/EN60947
Breaking Capacity
6KA
Characteristic Curve
B,C,D
Working Temperature
-5 to +40
Protection Degree
IP20
Installation
35MM DIN RAIL
Detailed Images
Shipment

DC MCB Packing Details:

2P DC MCB: 120 pcs per carton/47*24*34cm/28.7kg
4P DC MCB: 60 pcs per carton/47*24*34cm/28.7kg

DC MCB Delivery Time:

3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.

DC MCB Shipping:

1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!

FAQ

Q: If I'm interested in your DC MCB when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.

Q:Your DC MCB seems perfect but what's the difference between you and other suppliers? Because I find some cheaper price from others!
A: Our DC MCB is special for Solar system all the parts in the MCB are high quality customized.Not all the DC MCB are Solar MCB!

Q:Can I get a sample before the order because I really don't how is your DC MCB quality?
A:Of course!We also think sample order is the best way to build the trust.And in our company we offer free sample service!Please send the enquiry to us and get the free sample!

Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.

Q:How's the warranty period for your DC MCB?
A:We offer two year warranty for our customer.
